Sub-Slab Applications
One granular layer. Multiple below-slab functions.
Enviro-Rock is a foam glass aggregate used beneath concrete slabs where drainage, thermal performance, and soil-gas movement are important. Its open structure provides approximately 42% void space, while a design thermal value of approximately R-2 per inch allows the same granular layer to contribute to insulation beneath the slab.
Key Uses

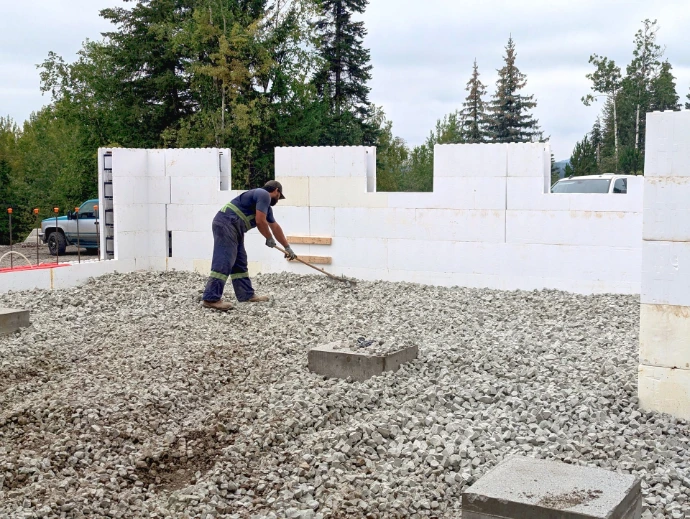

- Beneath slab-on-grade construction
- Gas-permeable layers within radon-control assemblies
- Sub-slab drainage and capillary-break layers
- Below-slab thermal insulation
- Basement floor assemblies
- Residential and commercial floor slabs
- Heated slab applications
- Assemblies combining drainage, insulation, and soil-gas movement
Overview
Sub-slab assemblies often require several different functions, including drainage, a capillary break, thermal resistance, and a pathway for soil gases. Enviro-Rock can combine these functions within a single granular layer beneath the concrete slab.
Its interconnected void structure allows water and soil gas to move through the aggregate layer, while its cellular glass structure provides thermal resistance. When incorporated into a properly designed radon-control system, Enviro-Rock can function as the gas-permeable layer that allows soil gas to move toward the collection and venting system.
Sub-Slab Applications
One granular layer. Multiple below-slab functions.
Enviro-Rock is a foam glass aggregate used beneath concrete slabs where drainage, thermal performance, and soil-gas movement are important. Its open structure provides approximately 42% void space, while a design thermal value of approximately R-2 per inch allows the same granular layer to contribute to insulation beneath the slab.
Key Uses
- Beneath slab-on-grade construction
- Gas-permeable layers within radon-control assemblies
- Sub-slab drainage and capillary-break layers
- Below-slab thermal insulation
- Basement floor assemblies
- Residential and commercial floor slabs
- Heated slab applications
- Assemblies combining drainage, insulation, and soil-gas movement
Overview
Sub-slab assemblies often require several different functions, including drainage, a capillary break, thermal resistance, and a pathway for soil gases. Enviro-Rock can combine these functions within a single granular layer beneath the concrete slab.
Its interconnected void structure allows water and soil gas to move through the aggregate layer, while its cellular glass structure provides thermal resistance. When incorporated into a properly designed radon-control system, Enviro-Rock can function as the gas-permeable layer that allows soil gas to move toward the collection and venting system.
Key Performance Considerations
Reduced Backfill Loading
Low unit weight reduces the mass of granular backfill placed against foundation and basement walls compared with conventional aggregate.
Drainage & Permeability
Provides an open, free-draining backfill zone adjacent to foundation walls as part of the overall below-grade drainage design.
Thermal Insulation
Allows the granular backfill layer to contribute thermal resistance around basement walls and other heated below-grade spaces.
Key Performance Considerations
Reduced Backfill Loading
Low unit weight reduces the mass of granular backfill placed against foundation and basement walls compared with conventional aggregate.
Drainage & Permeability
Provides an open, free-draining backfill zone adjacent to foundation walls as part of the overall below-grade drainage design.
Thermal Insulation
Allows the granular backfill layer to contribute thermal resistance around basement walls and other heated below-grade spaces.
